TRIMMEX CUTTOGRAF #69606

SKU
TRIMMEX CUTTOGRAF #69606
AUD$15.95
Availability: In stock

DISCOVER ITS TALENTS. WITH A ROUNDED-OFF BLADE.

A cutting tool that offers you a whole lot of possibilities? MARTOR has plenty of those. Like the TRIMMEX CUTTOGRAF with which you can cut and deburr effortlessly. We have fitted a blade with a rounded-off point in this variant which we recommend for both types of work. You can adjust the blade extension individually according to the material and the use.

PRODUCT FEATURES

Technical features

  • Tool-less blade change

  • Abrasion resistant

  • ergonomic

  • For right and left handers

  • Lanyard hole

  • Diameter and form of grip (oval 18 mm)

  • Blade retractable

  • Adaptable blade positioner

  • Rounded-tip scalpel blade

Main cutting materials

  • Plastic burr

  • Rubber burr

  • Coated film

  • Laminated film

  • Layers of foil or paper

  • Textile, material

  • Metal burr

  • Yarn, cord

Accessories

  • USED BLADE CONTAINER NO. 9810

  • WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845

  • SAFEBOX NO. 108000

Service

  • Consulting service

Installed blade

GRAPHIC BLADE NO. 606

Steel

rounded blade tip


Length

31.1 mm

Width

5.7 mm

Material thickness

0.5 mm

Optional blades

SCALPEL BLADE NO. 1031

Steel


Length

42 mm

Width

7.5 mm

Material thickness

0.4 mm

DO YOU HAVE FURTHER QUESTIONS?

CONTACT FORM

ALL HIGHLIGHTS AT A GLANCE.

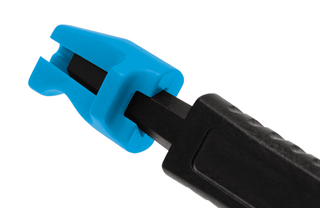

Easy blade changing

One could also describe it as intuitive. You can push the blade holder right to the front to remove the blade. Put the new one in, replace the holder, ready.

A wide variety of blades

Count for yourself. There is definitely the right one for you among this unusually large selection of blades. Meaningful and safe: many of the blades can be lowered into the handle.

Easy and handy

Working comfortably also always depends on the handiness of the tool. That's why the handle of the TRIMMEX CUTTOGRAF is ergonomically shaped. The grooves on the top and at the bottom give you an even better grip when cutting.

Flexible blade extension

You can decide for yourself, how far the blade should protrude out of the holder. So you can finely adjust the cutting tool time and again after each use.

Practical eyelet

You do not have to do without an eyelet in the TRIMMEX CUTTOGRAF. You can just pull a strap through it and hang the cutting tool up wherever you need it.

TRIMMEX CUTTOGRAF

NO. 69111

Discover its talents. With a pointed blade.

USAGE

YOUR CUTTING TOOL IN DETAIL.

Order number 69606.00
Packaging unit 1 on self-service card (10 knives in multipack)
Measurements (L x W x H) 145 x 16 x 18 mm
Weight product 24.3 g
Basic material Glass fibre reinforced plastic
Replacement blade Packaging unit GRAPHIC BLADE NO. 606 10 in magazine

MOUNTABLE BLADES.

GRAPHIC BLADE NO. 606

Steel

rounded blade tip


Length

31.1 mm

Width

5.7 mm

Material thickness

0.5 mm

SCALPEL BLADE NO. 1031

Steel


Length

42 mm

Width

7.5 mm

Material thickness

0.4 mm

SCALPEL BLADE NO. 10

Steel


Length

41.7 mm

Width

7.2 mm

Material thickness

0.4 mm

SCALPEL BLADE NO. 12

Steel


Length

38 mm

Width

11.4 mm

Material thickness

0.4 mm

SCALPEL BLADE NO. 13

Steel


Length

42.2 mm

Width

6.2 mm

Material thickness

0.4 mm

SCALPEL BLADE NO. 14

Steel


Length

48.8 mm

Width

7.4 mm

Material thickness

0.5 mm

SCALPEL BLADE NO. 15

Steel


Length

37.1 mm

Width

6.2 mm

Material thickness

0.4 mm

SCALPEL BLADE NO. 16

Steel


Length

37 mm

Width

9.5 mm

Material thickness

0.4 mm

CONVEX BLADE NO. 33

Steel


Length

40 mm

Width

8.5 mm

Material thickness

0.4 mm

GRAPHIC BLADE NO. 34

Steel


Length

36.5 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 43

Steel


Length

38 mm

Width

5.8 mm

Material thickness

0.4 mm

GRAPHIC BLADE NO. 72

Steel


Length

40 mm

Width

8.6 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 605

Steel


Length

32.7 mm

Width

5.7 mm

Material thickness

0.5 mm

USED BLADE CONTAINER

For the final disposal of your blades.

WALL MOUNT BRACKET USED BLADE CONTAINER

The glider with a short metal base - for "push" cutting

SAFEBOX

Your personal used-blade bank
