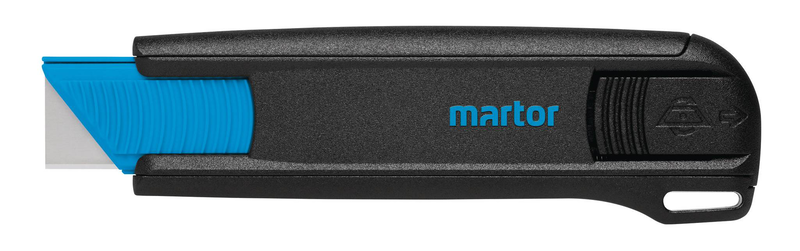

SECUNORM 175 #175001
SURPRISINGLY COMFORTABLE, INCREDIBLY CAPABLE.
The SECUNORM 175 enriches our range of popular small box cutters. Its unique features include the cleverly-designed and incredibly easy blade change system. Other highlights include its ergonomic handle, double-sided slider and a fresh design. The SECUNORM 175 is a versatile cutting tool that apart from cardboard boxes, also masters bags, films and strappings.
PRODUCT FEATURES
Technical features
High safety
Tool-less blade change
abrasion resistant
very ergonomic
4-cutting edge blade
cutting depth (10 mm)
For right and left handers
Lanyard hole
Printable for promotional purposes
Main cutting materials
Cardboard: up to 2-ply
Wrapping, stretch, and shrink foil
Plastic strapping band
Tape
Bagged goods
Layers of foil or paper
Yarn, cord
Accessories
BELT HOLSTER M WITH CLIP NO. 9921
USED BLADE CONTAINER NO. 9810
WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845
SAFEBOX NO. 108000
Service
Safety poster
Training video
Technical data sheet
Consulting service
Installed blade
Optional blades
INDUSTRIAL BLADE NO. 145
Steel
non-corrosive blade
Length
39 mm
Width
18.4 mm
Material thickness
0.3 mm
DO YOU HAVE FURTHER QUESTIONS?
CONTACT FORMALL HIGHLIGHTS AT A GLANCE.

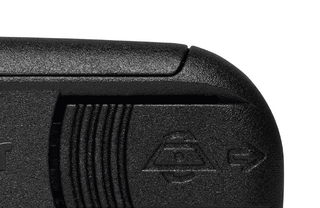

ERGONOMIC HANDLE
MARTOR wants to make your work easier for you, which is why we always have ergonomics in mind. With its small size and rounded off end, there's nothing uncomfortable about this knife. A grooved slider offers grip for even better handling.

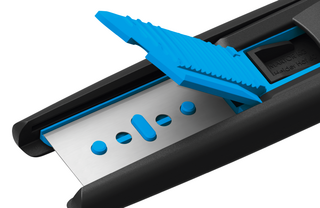

EASY BLADE CHANGE
Once again we've improved blade change. Simply press the blade change button and pull to open the handle. The slider automatically folds up, revealing the blade. Rotate or change and continue cutting.

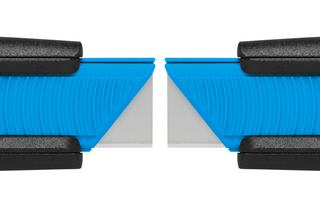

DOUBLE-SIDED SLIDER
The SECUNORM 175 is user friendly in the best sense of the word. And with its double sided slider, it is suitable for both, right and left handed users. No modification required.

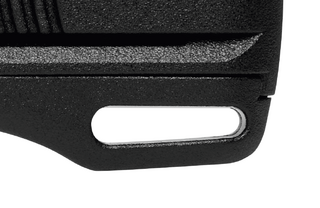

PRACTICAL EYELET
A cutting tool as handy as the SECUNORM 175 fits in your pocket. Mostly! To make your safety knife available even faster, you can pull a strap through the eyelet. And hang it around your wrist, for example.

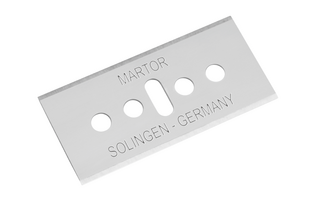

4-CUTTING EDGE BLADE
Why do you benefit more from your blade? With its four sharp edges, it can be rotated four times. That's why. The result? Blade life is quadrupled and you stay sharp for longer.
SAFE AND EFFICIENT USAGE.

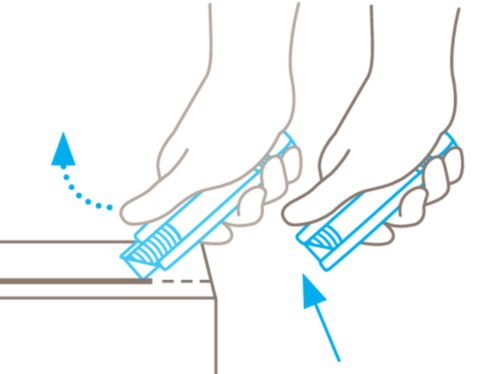

SAFETY TECHNOLOGY
Automatic blade retraction – a high degree of safety
he automatic blade retraction of the SECUNORM 175 guarantees a high degree of safety from cut injuries. As soon as you have started to cut, take your thumb off the slider. Then the blade will retract into the handle immediately after leaving the material being cut.
TRAINING VIDEO
Learn step by step how best to handle and use your MARTOR cutting tool.
USAGE
YOUR CUTTING TOOL IN DETAIL.
| Product |
SECUNORM 175 NO. 175001
|
| Order number | 175001.02 |
| GTIN | 4002632921087 |
| Packaging unit | 1 in single unit box (20 knives in multipack) |
| Measurements (L x W x H) | 109.5 x 13.5 x 34 mm |
| Weight product | 31 g |
| Cutting depth | 10 mm |
| Basic material | Glass fibre reinforced plastic |
| Replacement blade Packaging unit |
INDUSTRIAL BLADE NO. 45 10 in transparent pack |
| GS-Certificate | 186219-772-55094-2023 |
ACCESSORIES
| BELT HOLSTER M NO. 9921 |
|
| BELT HOLSTER XXL NO. 9924 |
 |
| USED BLADE CONTAINER NO. 9810 |
|
| WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845 |
|
| SAFEBOX NO. 108000 |
|
YOUR PROMOTION KNIVES IN DETAIL.

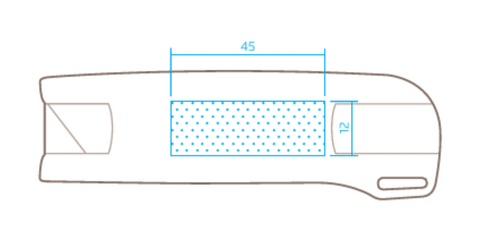

AVAILABLE PRINTING AREAS
Room for your ideas: The blue marked surface is the area which you can use for your communication (values in mm).
Front side

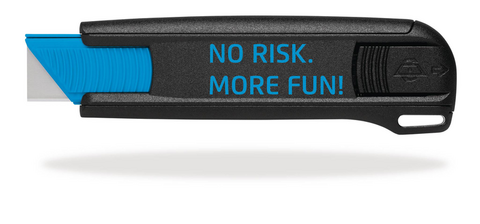

EXAMPLE
PRODUCTION DETAILS
| Order number | 175001.92 |
| Packaging unit | 1 in single unit box (20 knives in multipack) |
| Measurements (L x W x H) | 109.5 x 13.5 x 34 mm |
| Printing process | Tampon print |
| Minimum order quantity | 100 pieces |
| Standard colours |   |
MOUNTABLE BLADES.
INDUSTRIAL BLADE NO. 145
Steel
non-corrosive blade
Length
39 mm
Width
18.4 mm
Material thickness
0.3 mm
THE RIGHT ACCESSORIES.
BELT HOLSTER M NO. 9921
Everything always at hand: BELT HOLSTER M.
BELT HOLSTER XXL NO. 9924
Big on space. And in the possibilities.
USED BLADE CONTAINER NO. 9810
For the final disposal of your blades.
WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845
Makes the USED BLADE CONTAINER accessible to all.
SAFEBOX #108000
our personal used-blade bank
