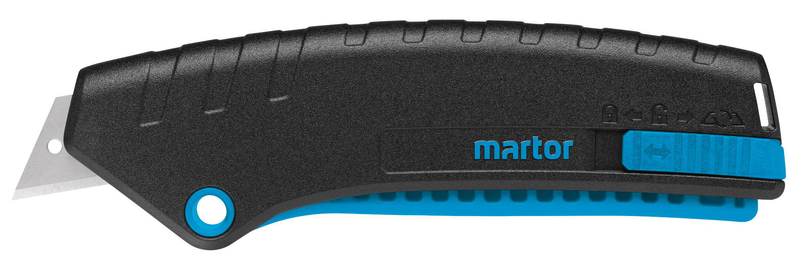

SECUNORM MIZAR #125001
MORE LEVERAGE, MORE PERFORMANCE. WITH TRAPEZOID BLADE.
The slimline SECUNORM MIZAR is your gateway into our world of quality squeeze-grip knives. Instead of a slider, a lever is responsible for releasing the blade. Squeeze and cut. Thanks to a relatively large cutting depth, you can use this safety knife to cut all common cutting materials. Efficiently. Its slender, no-fuss form, simultaneously allows a wide variety of cutting styles.
PRODUCT FEATURES
Technical features
High safety
Tool-less blade change
Very abrasion resistant
Very Ergonomic
Safety lock
2-cutting edge blade
Cutting depth (15 mm)
Ceramic blade compatible
For right and left handers
Lanyard hole
Printable for promotional purposes
Main cutting materials
Cardboard: up to 3-ply
Layers of foil or paper
Wrapping, stretch, and shrink foil
Bagged goods
Tape
Plastic strapping band
Yarn, cord
Textile, material
Accessories
BELT HOLSTER M WITH CLIP NO. 9921
USED BLADE CONTAINER NO. 9810
WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845
SAFEBOX NO. 108000
Service
Safety poster
-
Training video
Technical data sheet
Consulting service
Installed blade
Optional blades
CERAMIC BLADE NO. 65232C
Ceramic
stainless and acid resistant, deep-edged, rounded blade tips
Length
49.9 mm
Width
19 mm
Material thickness
0.65 mm
DO YOU HAVE FURTHER QUESTIONS?
CONTACT FORMALL HIGHLIGHTS AT A GLANCE.

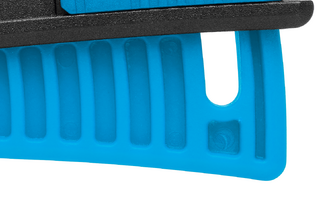

Ergonomically shaped
Right-handed? Left-handed? It makes no difference with the SECUNORM MIZAR. Its ergonomically designed, lockable squeeze grip comfortably fits all hands. Making cutting super easy. Regardless of the number of cuts you make per day.

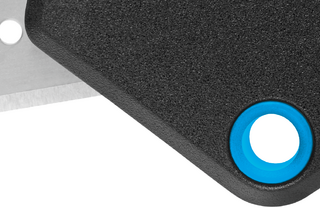

PLASTIC WITH A CONTENT
A glass fibre content, to be precise. These fibres are what make the SECUNORM MIZAR super strong and super solid. The durability of this safety knife is remarkable.

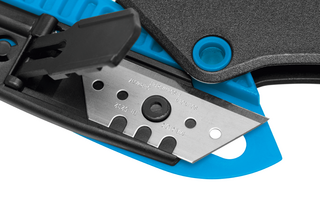

EASY BLADE CHANGE
No tools are needed to change the blade. Two hands can do the job. Move the 3-in-1 safety lock to position "blade change". Swing out the lever, flip the blade cover, replace the blade. Close the cover, store the lever, continue cutting!

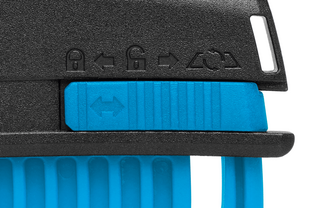

MULTIPURPOSE LOCKING FUNCTION
The SECUNORM MIZAR 3-in-1 safety lock is unique. Slide it to lock and unlock your cutting tool. And when necessary, move it to position 3 to safely change or rotate the blade.
2-CUTTING EDGE BLADE
Before you need to change the quality blade, you have the chance to turn it over once. Usage time of the blade is doubled and fatigue is held at bay: with a simple flip of the blade, your product will cut like new.
SECUNORM MIZAR
NO. 125002
More leverage, more performance. With ceramic blade.
SECUNORM MIZAR
NO. 1250019
More leverage, more performance. With ceramic blade.
SAFE AND EFFICIENT USAGE.
SAFETY TECHNOLOGY

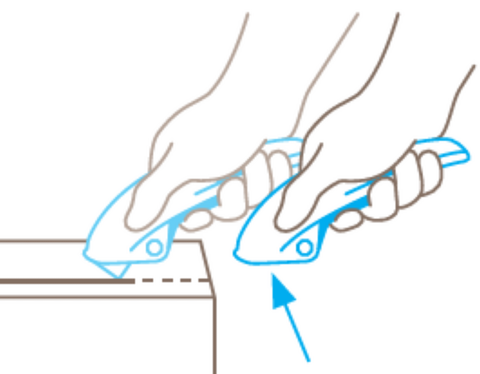

AUTOMATIC BLADE RETRACTION – A VERY HIGH DEGREE OF SAFETY
The SECUNORM MIZAR is equipped with automatic blade retraction: as soon as you release the lever, the blade disappears into the handle – and it stays there too. This provides a high degree of safety from cut injuries.
TRAINING VIDEO
Learn step by step how best to handle and use your MARTOR cutting tool.
USAGE
YOUR CUTTING TOOL IN DETAIL.
| Order number | 125001.02 |
| Packaging unit | 1 in single unit box (10 knives in multipack) |
| Measurements (L x W x H) | 139 x 15.6 x 50.5 mm |
| Weight product | 59 g |
| Cutting depth | 15 mm |
| Basic material | Glass fibre reinforced plastic |

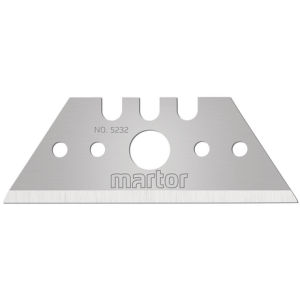

| Replacement blade Packaging unit | INDUSTRIAL BLADE NO. 5232 10 in transparent pack |
| GS-Certificate | 179274-7111-55094-2020 |
YOUR PROMOTION KNIVES IN DETAIL.

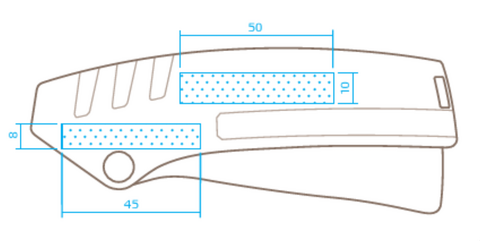

AVAILABLE PRINTING AREAS

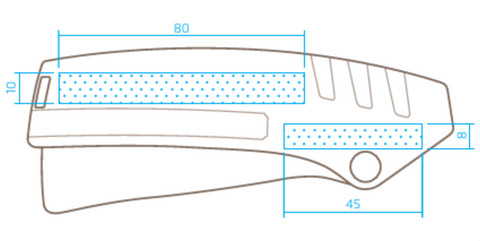

Room for your ideas: The blue marked surface is the area which you can use for your communication (values in mm).
Front side
Back side
PRODUCTION DETAILS
| Order number | 125001.92 |
| Packaging unit | 1 in single unit box (10 knives in multipack) |
| Measurements (L x W x H) | 139 x 15.6 x 50.5 mm |
| Printing process | Tampon print with heat treatment |
| Minimum order quantity | 100 pieces |
| Standard colours |  |
MOUNTABLE BLADES.
CERAMIC BLADE NO. 65232C
Ceramic
stainless and acid resistant, deep-edged, rounded blade tips
Length
49.9 mm
Width
19 mm
Material thickness
0.65 mm

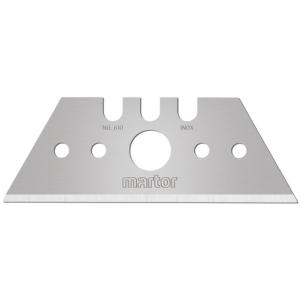

TRAPEZOID BLADE NO. 610
Steel
non-corrosive blade
Length
53 mm
Width
19 mm
Material thickness
0.63 mm

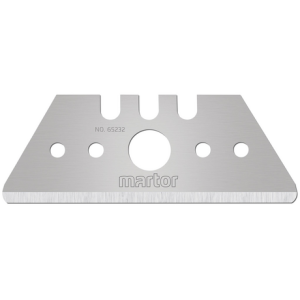

TRAPEZOID BLADE NO. 65232
Steel
deep-edged, rounded blade tips
Length
53 mm
Width
19 mm
Material thickness
0.63 mm
TRAPEZOID BLADE NO. 85232
Steel
deep-edged, TiN-coated
Length
53 mm
Width
19 mm
Material thickness
0.63 mm
TRAPEZOID BLADE NO. 852
Steel
non-corrosive blade , TiN-coated
Length
53 mm
Width
19 mm
Material thickness
0.63 mm
THE RIGHT ACCESSORIES.
BELT HOLSTER M WITH CLIP
Everything always at hand: BELT HOLSTER S.
WALL MOUNT BRACKET USED BLADE CONTAINER
Makes the USED BLADE CONTAINER accessible to all.
USED BLADE CONTAINER NO. 9921
Everything always at hand: BELT HOLSTER M.
SAFEBOX #108000
our personal used-blade bank
