GRAFIX 501 #810

SKU
GRAFIX 501 #810
AUD$15.50
Availability: In stock

THE ARTIST AMONG SCALPELS. WITH A CUTTING NEEDLE.

The GRAFIX 501 with a fitted cutting needle is made for all fine cutting work, e.g. for film and paper sheets. Or you can use it for precise scratching. With these skills, the GRAFIX 501 is recommended for advertising agencies and technical offices. Even if you depend on the highest degree of precision in model construction, the cutting needle is a valuable aid.

PRODUCT FEATURES

Technical features

  • Tool-less blade change

  • Very abrasion resistant

  • Full metal housing/p>

  • Ergonomic

  • For right and left hander

  • Anti-slip

  • Diameter and form of grip(round 8mm)

Main cutting materials

  • Coated film

  • Layers of foil or paper

  • Laminated film

Accessories

  • USED BLADE CONTAINER NO. 9810

  • WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845

  • SAFEBOX NO. 108000

Service

  • Consulting service

Installed blade

NEEDLE BLADE NO. 673

Steel


Length

25 mm

Width

2.5 mm

Material thickness

2.5 mm

Optional blades

TRIMMING BLADE NO. 674

Steel

non-corrosive blade


Length

30.5 mm

Width

8.8 mm

Material thickness

0.5 mm

DO YOU HAVE FURTHER QUESTIONS?

CONTACT FORM

ALL HIGHLIGHTS AT A GLANCE.

Robust Design

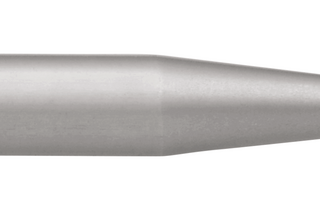

Handle and knurled nut are made completely of aluminium. For you, that means that the GRAFIX 501 will definitely count as your companion for longer.

Easy blade changing

And how easy it is: you turn open the knurled nut and you can already take out the old cutting needle. You replace the new one in the same way.

Easy and handy

The GRAFIX 501 doesn't just look like a pen, it lies just as comfortably in your hand. The grooves on the knurled nut contribute to this. The free view on to the cutting-in point is also an advantage.

A wide range of blades

0.50 or 2 mm thick, needle-type or rounded, single bevel edge ground or double bevel edge ground? As you can see, as far as blade varieties are concerned, the imagination is limitless.

GRAFIX 501

NO. 501

The artist among scalpels

safe and efficient usage

USAGE

YOUR CUTTING TOOL IN DETAIL.

Order number 810.00
Packaging unit 1 on self-service card (10 knives in multipack)
Measurements (L x W x H) 140 x 8.2 x 8.2 mm
Weight product 15 g
Basic material Aluminium
Replacement blade Packaging unit NEEDLE BLADE NO. 673 10 in magazine

MOUNTABLE BLADES.

NEEDLE BLADE NO. 673

Steel


Length

25 mm

Width

2.5 mm

Material thickness

2.5 mm

TRIMMING BLADE NO. 674

Steel

non-corrosive blade


Length

30.5 mm

Width

8.8 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 677

Steel


Length

37 mm

Width

6.1 mm

Material thickness

0.5 mm

CONVEX BLADE NO. 679

Steel


Length

32 mm

Width

7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 680

Steel


Length

37.5 mm

Width

6.1 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 34

Steel


Length

36.5 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 834

Steel

TiN-coated


Length

36.5 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 629

Steel

rounded blade tip


Length

34.4 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 8629

Steel

TiN-coated, rounded blade tip


Length

34.4 mm

Width

5.7 mm

Material thickness

0.0.5 mm

GRAPHIC BLADE NO. 605

Steel


Length

32.5 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 8605

Steel

TiN-coated


Length

32.5 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 606

Steel

rounded blade tip


Length

31.1 mm

Width

5.7 mm

Material thickness

0.5 mm

GRAPHIC BLADE NO. 8606

Steel

TiN-coated, rounded blade tip


Length

31.1 mm

Width

5.7 mm

Material thickness

0.5 mm
